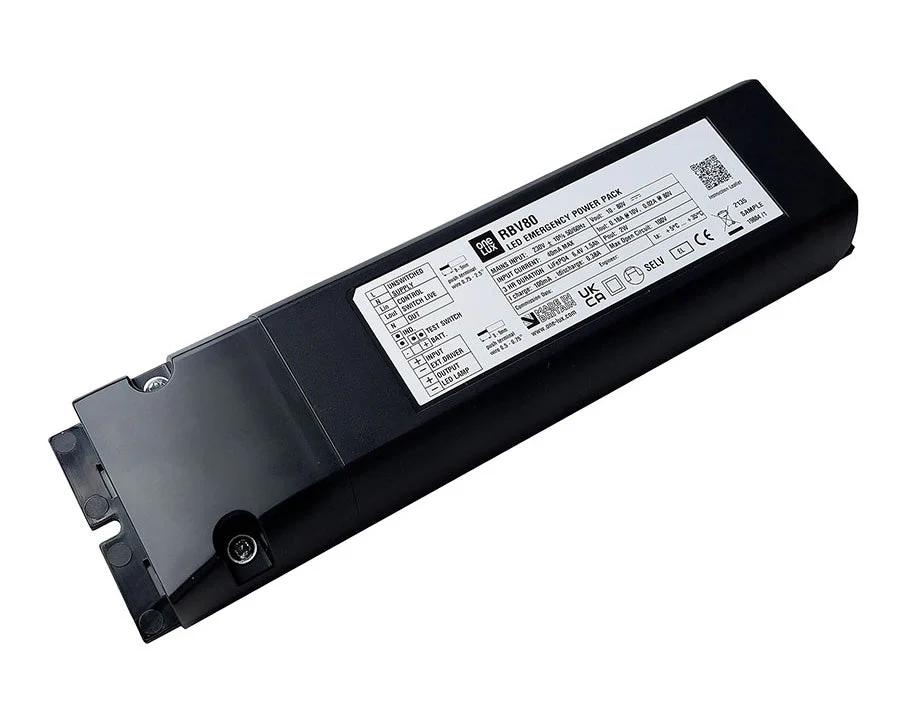

LED Versatile RemoteM is an effective solution for emergency
conversion of luminaires using LED arrays. The compact, robust
housing is supplied containing our LED emergency driver,
re-chargeable LiFePO4 battery and connection terminals. A
removable end cover provides easy access for wiring and
its compact, low-profile design allows installation through a
ceiling cut-out of just 75mm diameter. This product offers an
emergency solution for a wide range of applications and can be
used with a separate mains driver for Maintained applications. It
is also available pre-wired with cable assemblies for simple ‘plug-
and-play’ convenience.
British designed and manufactured emergency driver technology
will run LED lamps or arrays from 10V – 80V, so making it easy
to convert your existing LED luminaire without the need for
separate ‘emergency’ LEDs or connectors

Features
> Ideal for use with LED panels or down-lights
> Emergency output power options (Typical): 2W - 4W
> Green charge indicator LED with 500mm leads and bezel (OB1)
> Suitable for use with solid or stranded cables 0.2-1.5mm²
> Molded in black UL94_V0 rated Polycarbonate
> Options for 3 pole full isolation of lamp & mains driver power
during emergency available.
> Driver complies with: EN61347-1, EN61347-2-7, EN55015,
EN61000-3-2, EN61547
> Conforms to EN60598-1 & EN60598-2-22
> Mating panel plug & socket connections available on request
> Supplied with an individual protective box and packed in an outer
carton of 10 pieces. (MOQ 10 pieces)
> Optional Self-Test functionality coming soon*
Common Technical Data
Input Supply Voltage 230V +/- 10%
Supply Frequency 50/60 Hz
LED Voltage Range 10 - 80V DC
Battery Type 1.6Ah, 3.6Ah 6.4V LiFePO4
Ambient Temperature Range 5 - 35°C
IP Rating IP20
Earth Leakage Current N/A
Weight 0.3kg(2W), 0.4kg(4W)
Dimensions (mm) 245(l) x 67(w) x 32(h)
Minimum Ceiling Cut-out Size 75mm Diameter
