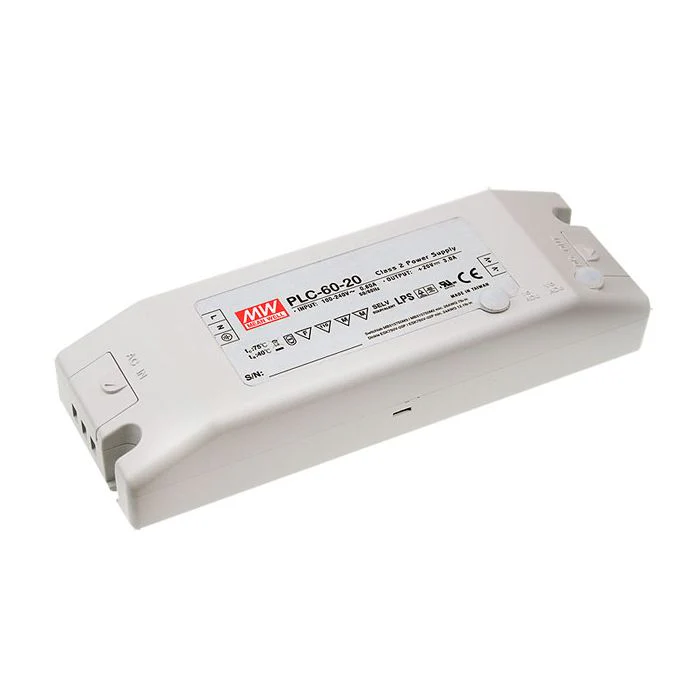

PLC-60-S - Mean Well PLC-60 Series LED Driver 60W 12V – 48V
Built-in constant current limiting circuit (C.V. + C.C. mode)Protections: Short circuit/ Over current/ Over voltage/ Over temperatureOther features:Universal AC input / full rangeFully isolated plastic case with screw terminal style of I/OAdjustable output voltage and current levelBuilt-in active PFC function, PF>0.9 for 75% of load or higherHigh efficiency up to 90%Class 2 power unit / Pass LPSIsolation class II, no F.G.Cooling by free air convection100% full load burn-in test2 years warranty
More Information Output Wattage (W) 60 Output Voltage Choose Option DC Output Adjustment 95%~108% rated output voltage adjustable by internal potentiometer Dimensions 181 x 61.5 x 35 EMC Standards EN55015, EN55022 class B, EN61547, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11 Input Voltage 90~264VAC; 127~370VDC Safety Standards UL1310, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 approved Output Voltage Options Single Working Temperature -30~+50°C (Refer to "Derating Curve") PDF Datasheet PLC-60-SPEC.PDF
More Information Output Wattage (W) 60 Output Voltage Choose Option DC Output Adjustment 95%~108% rated output voltage adjustable by internal potentiometer Dimensions 181 x 61.5 x 35 EMC Standards EN55015, EN55022 class B, EN61547, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11 Input Voltage 90~264VAC; 127~370VDC Safety Standards UL1310, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 approved Output Voltage Options Single Working Temperature -30~+50°C (Refer to "Derating Curve") PDF Datasheet PLC-60-SPEC.PDF
Built-in constant current limiting circuit (C.V. + C.C. mode)Protections: Short circuit/ Over current/ Over voltage/ Over temperatureOther features:Universal AC input / full rangeFully isolated plastic case with screw terminal style of I/OAdjustable output voltage and current levelBuilt-in active PFC function, PF>0.9 for 75% of load or higherHigh efficiency up to 90%Class 2 power unit / Pass LPSIsolation class II, no F.G.Cooling by free air convection100% full load burn-in test2 years warranty
More Information Output Wattage (W) 60 Output Voltage Choose Option DC Output Adjustment 95%~108% rated output voltage adjustable by internal potentiometer Dimensions 181 x 61.5 x 35 EMC Standards EN55015, EN55022 class B, EN61547, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11 Input Voltage 90~264VAC; 127~370VDC Safety Standards UL1310, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 approved Output Voltage Options Single Working Temperature -30~+50°C (Refer to "Derating Curve") PDF Datasheet PLC-60-SPEC.PDF
More Information Output Wattage (W) 60 Output Voltage Choose Option DC Output Adjustment 95%~108% rated output voltage adjustable by internal potentiometer Dimensions 181 x 61.5 x 35 EMC Standards EN55015, EN55022 class B, EN61547, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11 Input Voltage 90~264VAC; 127~370VDC Safety Standards UL1310, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 approved Output Voltage Options Single Working Temperature -30~+50°C (Refer to "Derating Curve") PDF Datasheet PLC-60-SPEC.PDF
$18.95
Original: $54.15
-65%PLC-60-S - Mean Well PLC-60 Series LED Driver 60W 12V – 48V—
$54.15
$18.95Description
Built-in constant current limiting circuit (C.V. + C.C. mode)Protections: Short circuit/ Over current/ Over voltage/ Over temperatureOther features:Universal AC input / full rangeFully isolated plastic case with screw terminal style of I/OAdjustable output voltage and current levelBuilt-in active PFC function, PF>0.9 for 75% of load or higherHigh efficiency up to 90%Class 2 power unit / Pass LPSIsolation class II, no F.G.Cooling by free air convection100% full load burn-in test2 years warranty
More Information Output Wattage (W) 60 Output Voltage Choose Option DC Output Adjustment 95%~108% rated output voltage adjustable by internal potentiometer Dimensions 181 x 61.5 x 35 EMC Standards EN55015, EN55022 class B, EN61547, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11 Input Voltage 90~264VAC; 127~370VDC Safety Standards UL1310, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 approved Output Voltage Options Single Working Temperature -30~+50°C (Refer to "Derating Curve") PDF Datasheet PLC-60-SPEC.PDF
More Information Output Wattage (W) 60 Output Voltage Choose Option DC Output Adjustment 95%~108% rated output voltage adjustable by internal potentiometer Dimensions 181 x 61.5 x 35 EMC Standards EN55015, EN55022 class B, EN61547, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11 Input Voltage 90~264VAC; 127~370VDC Safety Standards UL1310, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 approved Output Voltage Options Single Working Temperature -30~+50°C (Refer to "Derating Curve") PDF Datasheet PLC-60-SPEC.PDF
