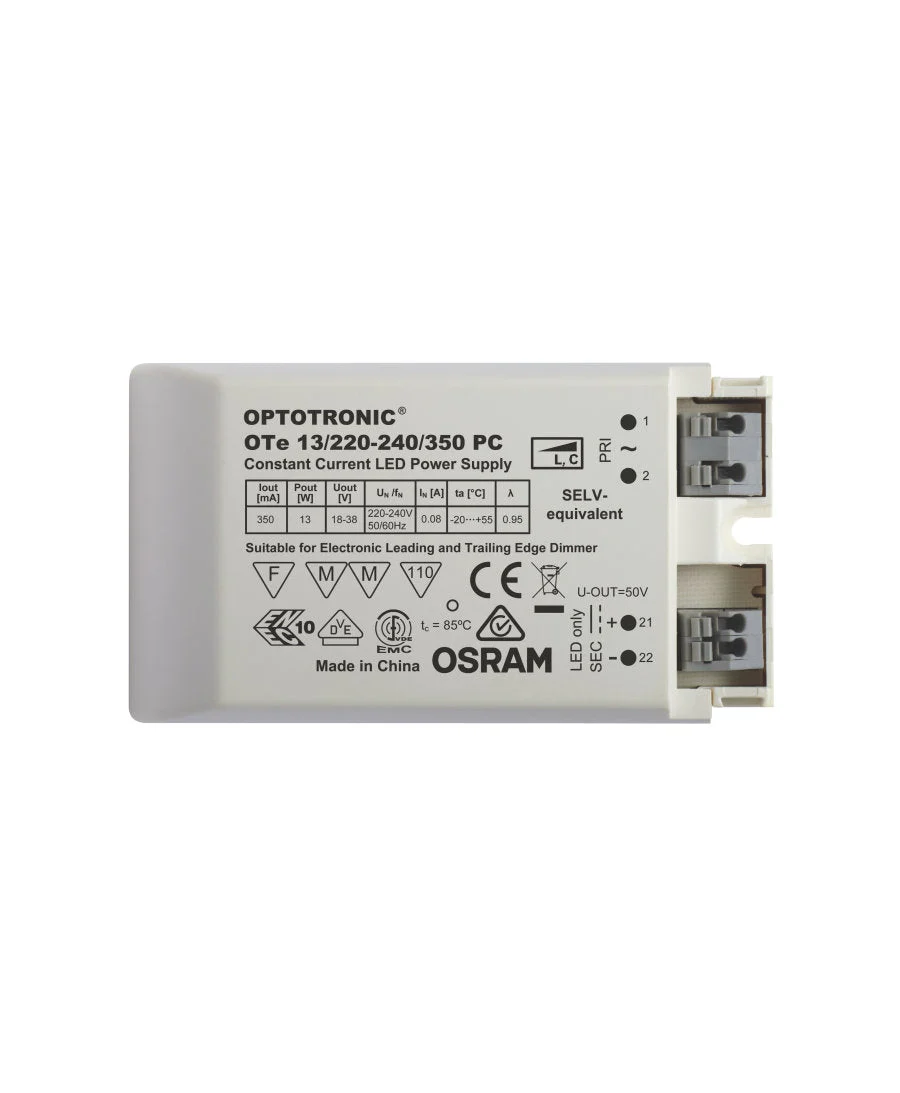

OTe 13/220…240/350 PC
- Compact housing for mounting in very tight spaces
- Compatible with the most common leading-edge and trailing-edge phase dimmers
- Optional cable clamp E-style for independent mounting
- Suitable for indoor installations
- Suitable for indoor SELV installations
Technical Data
Electrical data
Nominal input voltage
220…240 V
Mains frequency
50/60 Hz
Input voltage AC
198…264 V
Total harmonic distortion
< 20 %
Power factor λ
0.95/0.90
Efficiency in full-load
84 %
Device power loss
2.6 W
Inrush current
5 A
Max. ECG no. on circuit breaker 10 A (B)
82
Max. ECG no. on circuit breaker 16 A (B)
130
Max. ECG no. on circuit breaker 25 A (B)
-
Surge capability (L/N-Ground)
1 kV
Surge capability (L-N)
1 kV
Nominal output voltage
18…38 V
U-OUT (working voltage)
50 V
Nominal output current
350 mA
Output current tolerance
±10 %
Output ripple current (100 Hz)
25 %
Output PSTLM
≤1
Output SVM
≤0.6
Nominal output power
13 W
Maximum output power
13 W
Galvanic isolation primary/secondary
SELV
Current set
Fixed current
Dimensions & weight
Mounting hole spacing, length
-
Mounting hole spacing, width
-
Product weight
81.00 g
Cable cross-section, input side
0.75…1.5 mm²
Cable cross-section, output side
0.5…1.5 mm²
Wire preparation length, input side
8.0…9.0 mm
Wire preparation length, output side
8.0…9.0 mm
Height
25.0 mm
Width
53.0 mm
Length
95.0 mm
Colors & materials
Casing material
Plastic
Temperatures & operating conditions
Ambient temperature range
-20…+55 °C
Maximum temperature at tc test point
85 °C
Max.housing temperature in case of fault
110 °C
Temperature range at storage
-25…75 °C
Permitted rel. humidity during operation
5…85 %
Lifespan
ECG lifetime
50000 h
Capabilities
Dimmable
Yes
Dimming interface
Phase Cut
Dimming range
10…100 %
Dimming method
Amplitude Modulation
Overheating protection
Automatic reversible
Overload protection
Automatic reversible
Short-circuit protection
Automatic reversible
No-load proof
Yes
Intended for no-load operation
No
Max. cable length to lamp/LED module
2.0 m
Suitable for fixtures with prot. class
I / II
Type of connection, output side
Push terminal
Suitable for through-wiring
No
Certificates & standards
Approval marks – approval
CE / ENEC 10 / VDE / CB
Standards
Acc. to IEC 61347-1/Acc. to IEC 61347-2-13/Acc. to IEC 62384/Acc. to CISPR 15/Acc. to IEC 61000-3-2/Acc. to IEC 61000-3-3/Acc. to IEC 61547
Protection class
II
Type of protection
IP20
Logistical data
Commodity code
850440839000
Environmental information
Information according Art. 33 of EU Regulation (EC) 1907/2006 (REACh)
Date of Declaration
05-05-2023
Primary Article Identifier
4052899105324
Candidate List Substance 1
Lead
CAS No. of substance 1
7439-92-1
Safe Use Instruction
The identification of the Candidate List substance is sufficient to allow safe use of the article.
Declaration No. in SCIP database
a00aea49-8dd4-48d8-b0a5-4190000b7d45
