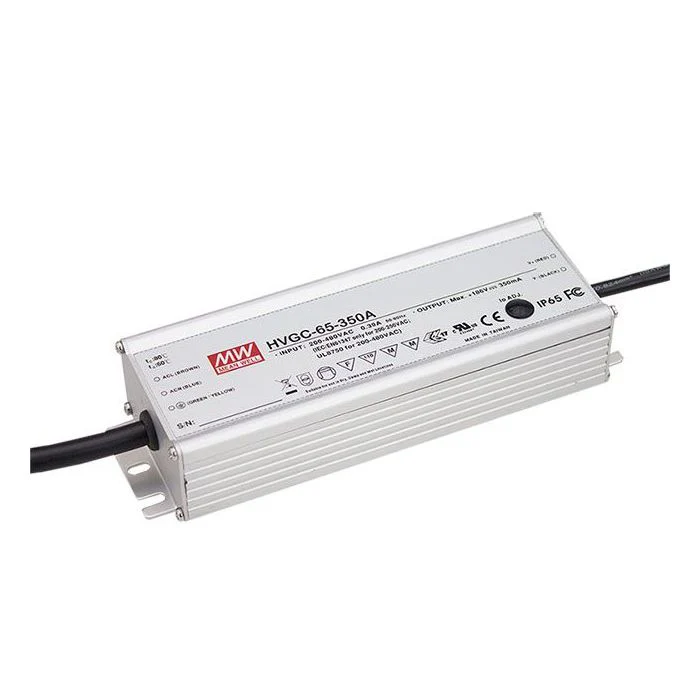

HVGC-65-BS - Mean Well HVGC-65 Series LED Driver 65WW 350mA – 700mA
Constant current designWide input range 180~528VACThree in one dimming function (0~10Vdc or 10V PWM signal or resistance)Protections: Short circuit/ Over current/ Over voltage/ Over temperatureOther features:Built-in active PFC functionHigh efficiency up to 90.5%Cooling by free air convectionIP67 design for indoor or outdoor installationsSuitable for LED lighting and street lighting applicationsCompliance to worldwide safety regulations for lightingSuitable for dry/ damp/ wet locations5 year warranty
More Information Manufacturer Mean Well Output Wattage (W) 65 Output Current Choose Option Dimmable (Type) 1-10VDC, PWM signal, resistance Dimensions 189x 61.5x 36.8 (LxWxH) mm EMC Standards Compliance to EN55015, EN61000-3-2 Class C (?60% load) ; EN61000-3-3, FCC part 15 class B, EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge 4KV), criteria A Input Voltage 180~528VAC, 254~747VDC Safety Standards UL8750, CSA C22.2 No. 250.0-13, ENEC EN61347-1, EN61347-2-13, EN62384, independent, IP65 approved Output Voltage Options Single Working Temperature -30~+60°C (Refer to "Derating Curve") PDF Datasheet HVGC-65-spec.pdf
More Information Manufacturer Mean Well Output Wattage (W) 65 Output Current Choose Option Dimmable (Type) 1-10VDC, PWM signal, resistance Dimensions 189x 61.5x 36.8 (LxWxH) mm EMC Standards Compliance to EN55015, EN61000-3-2 Class C (?60% load) ; EN61000-3-3, FCC part 15 class B, EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge 4KV), criteria A Input Voltage 180~528VAC, 254~747VDC Safety Standards UL8750, CSA C22.2 No. 250.0-13, ENEC EN61347-1, EN61347-2-13, EN62384, independent, IP65 approved Output Voltage Options Single Working Temperature -30~+60°C (Refer to "Derating Curve") PDF Datasheet HVGC-65-spec.pdf
Constant current designWide input range 180~528VACThree in one dimming function (0~10Vdc or 10V PWM signal or resistance)Protections: Short circuit/ Over current/ Over voltage/ Over temperatureOther features:Built-in active PFC functionHigh efficiency up to 90.5%Cooling by free air convectionIP67 design for indoor or outdoor installationsSuitable for LED lighting and street lighting applicationsCompliance to worldwide safety regulations for lightingSuitable for dry/ damp/ wet locations5 year warranty
More Information Manufacturer Mean Well Output Wattage (W) 65 Output Current Choose Option Dimmable (Type) 1-10VDC, PWM signal, resistance Dimensions 189x 61.5x 36.8 (LxWxH) mm EMC Standards Compliance to EN55015, EN61000-3-2 Class C (?60% load) ; EN61000-3-3, FCC part 15 class B, EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge 4KV), criteria A Input Voltage 180~528VAC, 254~747VDC Safety Standards UL8750, CSA C22.2 No. 250.0-13, ENEC EN61347-1, EN61347-2-13, EN62384, independent, IP65 approved Output Voltage Options Single Working Temperature -30~+60°C (Refer to "Derating Curve") PDF Datasheet HVGC-65-spec.pdf
More Information Manufacturer Mean Well Output Wattage (W) 65 Output Current Choose Option Dimmable (Type) 1-10VDC, PWM signal, resistance Dimensions 189x 61.5x 36.8 (LxWxH) mm EMC Standards Compliance to EN55015, EN61000-3-2 Class C (?60% load) ; EN61000-3-3, FCC part 15 class B, EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge 4KV), criteria A Input Voltage 180~528VAC, 254~747VDC Safety Standards UL8750, CSA C22.2 No. 250.0-13, ENEC EN61347-1, EN61347-2-13, EN62384, independent, IP65 approved Output Voltage Options Single Working Temperature -30~+60°C (Refer to "Derating Curve") PDF Datasheet HVGC-65-spec.pdf
$34.54
Original: $98.69
-65%HVGC-65-BS - Mean Well HVGC-65 Series LED Driver 65WW 350mA – 700mA—
$98.69
$34.54Description
Constant current designWide input range 180~528VACThree in one dimming function (0~10Vdc or 10V PWM signal or resistance)Protections: Short circuit/ Over current/ Over voltage/ Over temperatureOther features:Built-in active PFC functionHigh efficiency up to 90.5%Cooling by free air convectionIP67 design for indoor or outdoor installationsSuitable for LED lighting and street lighting applicationsCompliance to worldwide safety regulations for lightingSuitable for dry/ damp/ wet locations5 year warranty
More Information Manufacturer Mean Well Output Wattage (W) 65 Output Current Choose Option Dimmable (Type) 1-10VDC, PWM signal, resistance Dimensions 189x 61.5x 36.8 (LxWxH) mm EMC Standards Compliance to EN55015, EN61000-3-2 Class C (?60% load) ; EN61000-3-3, FCC part 15 class B, EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge 4KV), criteria A Input Voltage 180~528VAC, 254~747VDC Safety Standards UL8750, CSA C22.2 No. 250.0-13, ENEC EN61347-1, EN61347-2-13, EN62384, independent, IP65 approved Output Voltage Options Single Working Temperature -30~+60°C (Refer to "Derating Curve") PDF Datasheet HVGC-65-spec.pdf
