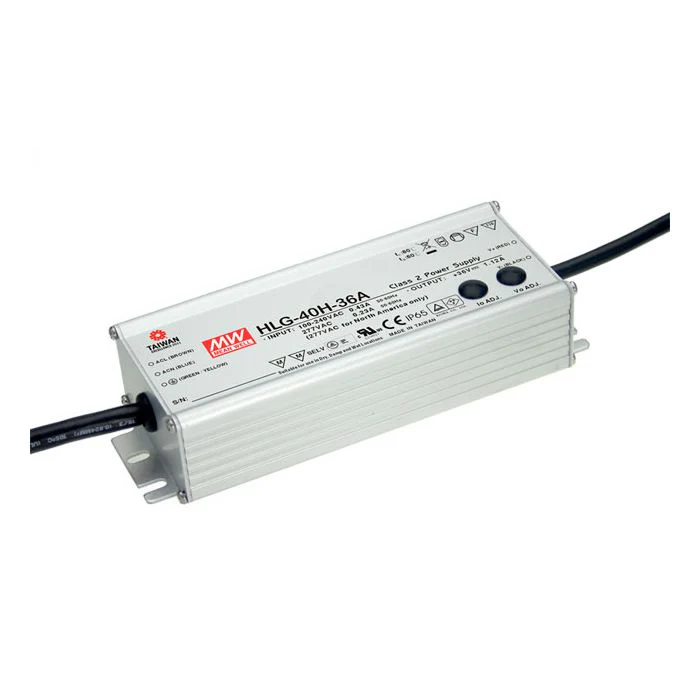

HLG-40H-S - Mean Well HLG-40H Series LED Driver 40W 12V – 54V
IP65 design for indoor or outdoor installations
Output voltage and constant current level can be adjusted through internal potentiometer.
Built-in active PFC, PF>0.9 for 60% of load or higher
5 years warranty
Protections: Short circuit / Over current / Over voltage / Over temperature
Other features:
Universal AC input (up to 305VAC) / Full range
High efficiency up to 90.5%
Output current adjustable through output cable
Cooling by free air convection
IP65 rated
Suitable for LED lighting and street lighting applications
Meet 4KV surge immunity level (IEC61000-4-5)
Class 2 power unit
More Information Manufacturer Mean Well Output Wattage (W) 40 Dimmable (Type) Choose Option DC Output Adjustment -0 EMC Standards EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, EN55024 Input Voltage 90~305VAC, 127~431VDC Safety Standards UL8750, TUV EN61347-1, EN61347-2-13 approved; Design refer to UL60950-1, EN60950-1, EN60335-1 Output Voltage Options Single Working Temperature -40~+70°C PDF Datasheet HLG-40H-spec_11.pdf
More Information Manufacturer Mean Well Output Wattage (W) 40 Dimmable (Type) Choose Option DC Output Adjustment -0 EMC Standards EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, EN55024 Input Voltage 90~305VAC, 127~431VDC Safety Standards UL8750, TUV EN61347-1, EN61347-2-13 approved; Design refer to UL60950-1, EN60950-1, EN60335-1 Output Voltage Options Single Working Temperature -40~+70°C PDF Datasheet HLG-40H-spec_11.pdf
IP65 design for indoor or outdoor installations
Output voltage and constant current level can be adjusted through internal potentiometer.
Built-in active PFC, PF>0.9 for 60% of load or higher
5 years warranty
Protections: Short circuit / Over current / Over voltage / Over temperature
Other features:
Universal AC input (up to 305VAC) / Full range
High efficiency up to 90.5%
Output current adjustable through output cable
Cooling by free air convection
IP65 rated
Suitable for LED lighting and street lighting applications
Meet 4KV surge immunity level (IEC61000-4-5)
Class 2 power unit
More Information Manufacturer Mean Well Output Wattage (W) 40 Dimmable (Type) Choose Option DC Output Adjustment -0 EMC Standards EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, EN55024 Input Voltage 90~305VAC, 127~431VDC Safety Standards UL8750, TUV EN61347-1, EN61347-2-13 approved; Design refer to UL60950-1, EN60950-1, EN60335-1 Output Voltage Options Single Working Temperature -40~+70°C PDF Datasheet HLG-40H-spec_11.pdf
More Information Manufacturer Mean Well Output Wattage (W) 40 Dimmable (Type) Choose Option DC Output Adjustment -0 EMC Standards EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, EN55024 Input Voltage 90~305VAC, 127~431VDC Safety Standards UL8750, TUV EN61347-1, EN61347-2-13 approved; Design refer to UL60950-1, EN60950-1, EN60335-1 Output Voltage Options Single Working Temperature -40~+70°C PDF Datasheet HLG-40H-spec_11.pdf
$16.93
Original: $48.38
-65%HLG-40H-S - Mean Well HLG-40H Series LED Driver 40W 12V – 54V—
$48.38
$16.93Description
IP65 design for indoor or outdoor installations
Output voltage and constant current level can be adjusted through internal potentiometer.
Built-in active PFC, PF>0.9 for 60% of load or higher
5 years warranty
Protections: Short circuit / Over current / Over voltage / Over temperature
Other features:
Universal AC input (up to 305VAC) / Full range
High efficiency up to 90.5%
Output current adjustable through output cable
Cooling by free air convection
IP65 rated
Suitable for LED lighting and street lighting applications
Meet 4KV surge immunity level (IEC61000-4-5)
Class 2 power unit
More Information Manufacturer Mean Well Output Wattage (W) 40 Dimmable (Type) Choose Option DC Output Adjustment -0 EMC Standards EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, EN55024 Input Voltage 90~305VAC, 127~431VDC Safety Standards UL8750, TUV EN61347-1, EN61347-2-13 approved; Design refer to UL60950-1, EN60950-1, EN60335-1 Output Voltage Options Single Working Temperature -40~+70°C PDF Datasheet HLG-40H-spec_11.pdf
More Information Manufacturer Mean Well Output Wattage (W) 40 Dimmable (Type) Choose Option DC Output Adjustment -0 EMC Standards EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, EN55024 Input Voltage 90~305VAC, 127~431VDC Safety Standards UL8750, TUV EN61347-1, EN61347-2-13 approved; Design refer to UL60950-1, EN60950-1, EN60335-1 Output Voltage Options Single Working Temperature -40~+70°C PDF Datasheet HLG-40H-spec_11.pdf
