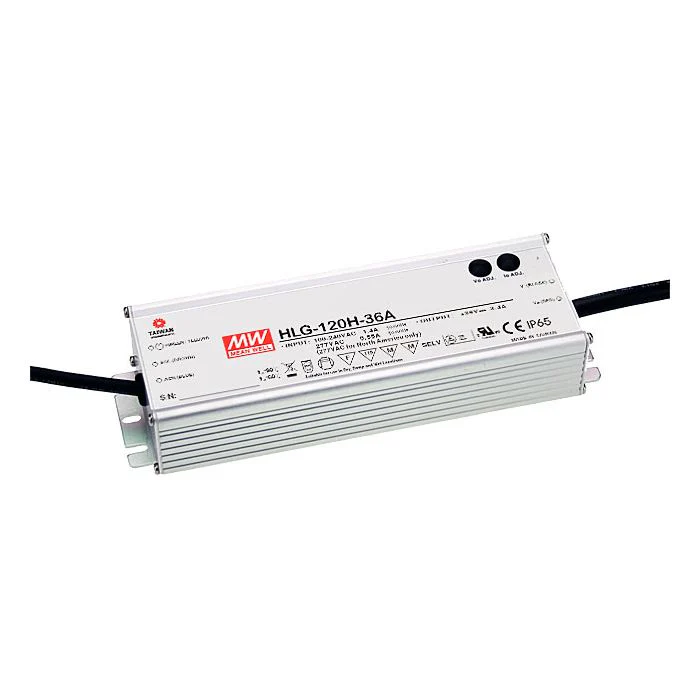

HLG-120H-S - Mean Well HLG-120H Series LED Driver 120W 12V – 54V
Output voltage and constant current level can be adjusted through internal potentiometer.
IP65 rated
Protections: Short circuit / Over current / Over voltage / Over temperature
Other features:
Universal AC input (up to 305VAC) / Full range
High efficiency up to 94%
Output current adjustable through output cable or internal potentiometer
Cooling by free air convection
Suitable for dry, damp and wet location
Suitable for LED lighting and street lighting applications
Meet 4KV surge immunity level (IEC61000-4-5)
Multiple models for choice:
IP65 Rated
5 years warranty
More Information Manufacturer Mean Well Output Wattage (W) 120 Dimmable (Type) Choose Option DC Output Adjustment -0 EMC Standards EN55015, EN55022, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, EN55024 Input Voltage 90~305VAC, 127~431VDC Safety Standards TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 approved Output Voltage Options Single Working Temperature -40~+70°C PDF Datasheet HLG-120-spec.pdf
More Information Manufacturer Mean Well Output Wattage (W) 120 Dimmable (Type) Choose Option DC Output Adjustment -0 EMC Standards EN55015, EN55022, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, EN55024 Input Voltage 90~305VAC, 127~431VDC Safety Standards TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 approved Output Voltage Options Single Working Temperature -40~+70°C PDF Datasheet HLG-120-spec.pdf
Output voltage and constant current level can be adjusted through internal potentiometer.
IP65 rated
Protections: Short circuit / Over current / Over voltage / Over temperature
Other features:
Universal AC input (up to 305VAC) / Full range
High efficiency up to 94%
Output current adjustable through output cable or internal potentiometer
Cooling by free air convection
Suitable for dry, damp and wet location
Suitable for LED lighting and street lighting applications
Meet 4KV surge immunity level (IEC61000-4-5)
Multiple models for choice:
IP65 Rated
5 years warranty
More Information Manufacturer Mean Well Output Wattage (W) 120 Dimmable (Type) Choose Option DC Output Adjustment -0 EMC Standards EN55015, EN55022, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, EN55024 Input Voltage 90~305VAC, 127~431VDC Safety Standards TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 approved Output Voltage Options Single Working Temperature -40~+70°C PDF Datasheet HLG-120-spec.pdf
More Information Manufacturer Mean Well Output Wattage (W) 120 Dimmable (Type) Choose Option DC Output Adjustment -0 EMC Standards EN55015, EN55022, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, EN55024 Input Voltage 90~305VAC, 127~431VDC Safety Standards TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 approved Output Voltage Options Single Working Temperature -40~+70°C PDF Datasheet HLG-120-spec.pdf
$66.97
HLG-120H-S - Mean Well HLG-120H Series LED Driver 120W 12V – 54V—
$66.97
Description
Output voltage and constant current level can be adjusted through internal potentiometer.
IP65 rated
Protections: Short circuit / Over current / Over voltage / Over temperature
Other features:
Universal AC input (up to 305VAC) / Full range
High efficiency up to 94%
Output current adjustable through output cable or internal potentiometer
Cooling by free air convection
Suitable for dry, damp and wet location
Suitable for LED lighting and street lighting applications
Meet 4KV surge immunity level (IEC61000-4-5)
Multiple models for choice:
IP65 Rated
5 years warranty
More Information Manufacturer Mean Well Output Wattage (W) 120 Dimmable (Type) Choose Option DC Output Adjustment -0 EMC Standards EN55015, EN55022, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, EN55024 Input Voltage 90~305VAC, 127~431VDC Safety Standards TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 approved Output Voltage Options Single Working Temperature -40~+70°C PDF Datasheet HLG-120-spec.pdf
More Information Manufacturer Mean Well Output Wattage (W) 120 Dimmable (Type) Choose Option DC Output Adjustment -0 EMC Standards EN55015, EN55022, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, EN55024 Input Voltage 90~305VAC, 127~431VDC Safety Standards TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 approved Output Voltage Options Single Working Temperature -40~+70°C PDF Datasheet HLG-120-spec.pdf
