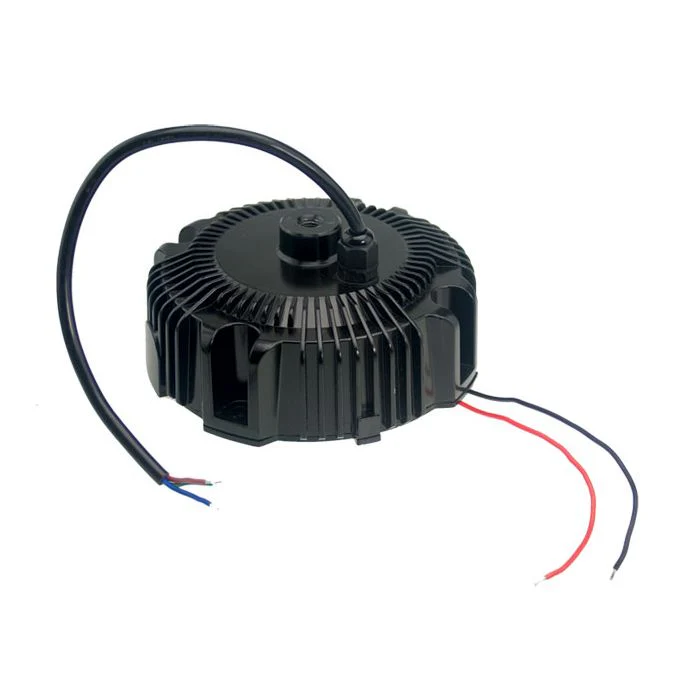

HBG-100-S - Mean Well HBG-100 Series LED Driver 96W – 97W 24V – 60V
IP67 design for indoor or outdoor installationsBuilt-in 3 in 1 dimming function (1~10VDC, PWM signal, or resistance)5 years warrantyProtections: Short circuit / Over current / Over voltage / Over temperatureOther features:Universal AC input (up to 305VAC) / Full rangeBuilt-in active PFCHigh efficiency up to 91.5%Output current adjustable through output cableCooling by free air convectionSuitable for dry, damp and wet locationSuitable for LED lighting and street lighting applicationsMeet 4KV surge immunity levelClass 2 power unit
More Information Output Wattage (W) 96 Output Voltage Choose Option Dimensions 113x 113x 66.5 EMC Standards EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge 4KV). criteria A Input Voltage 90~305VAC, 127~431VDC Safety Standards UL8750, EN61347-2-13 Output Voltage Options Single Working Temperature -40~+70°C PDF Datasheet HBG-100-spec_3.pdf
More Information Output Wattage (W) 96 Output Voltage Choose Option Dimensions 113x 113x 66.5 EMC Standards EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge 4KV). criteria A Input Voltage 90~305VAC, 127~431VDC Safety Standards UL8750, EN61347-2-13 Output Voltage Options Single Working Temperature -40~+70°C PDF Datasheet HBG-100-spec_3.pdf
IP67 design for indoor or outdoor installationsBuilt-in 3 in 1 dimming function (1~10VDC, PWM signal, or resistance)5 years warrantyProtections: Short circuit / Over current / Over voltage / Over temperatureOther features:Universal AC input (up to 305VAC) / Full rangeBuilt-in active PFCHigh efficiency up to 91.5%Output current adjustable through output cableCooling by free air convectionSuitable for dry, damp and wet locationSuitable for LED lighting and street lighting applicationsMeet 4KV surge immunity levelClass 2 power unit
More Information Output Wattage (W) 96 Output Voltage Choose Option Dimensions 113x 113x 66.5 EMC Standards EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge 4KV). criteria A Input Voltage 90~305VAC, 127~431VDC Safety Standards UL8750, EN61347-2-13 Output Voltage Options Single Working Temperature -40~+70°C PDF Datasheet HBG-100-spec_3.pdf
More Information Output Wattage (W) 96 Output Voltage Choose Option Dimensions 113x 113x 66.5 EMC Standards EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge 4KV). criteria A Input Voltage 90~305VAC, 127~431VDC Safety Standards UL8750, EN61347-2-13 Output Voltage Options Single Working Temperature -40~+70°C PDF Datasheet HBG-100-spec_3.pdf
$23.37
Original: $66.78
-65%HBG-100-S - Mean Well HBG-100 Series LED Driver 96W – 97W 24V – 60V—
$66.78
$23.37Description
IP67 design for indoor or outdoor installationsBuilt-in 3 in 1 dimming function (1~10VDC, PWM signal, or resistance)5 years warrantyProtections: Short circuit / Over current / Over voltage / Over temperatureOther features:Universal AC input (up to 305VAC) / Full rangeBuilt-in active PFCHigh efficiency up to 91.5%Output current adjustable through output cableCooling by free air convectionSuitable for dry, damp and wet locationSuitable for LED lighting and street lighting applicationsMeet 4KV surge immunity levelClass 2 power unit
More Information Output Wattage (W) 96 Output Voltage Choose Option Dimensions 113x 113x 66.5 EMC Standards EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge 4KV). criteria A Input Voltage 90~305VAC, 127~431VDC Safety Standards UL8750, EN61347-2-13 Output Voltage Options Single Working Temperature -40~+70°C PDF Datasheet HBG-100-spec_3.pdf
More Information Output Wattage (W) 96 Output Voltage Choose Option Dimensions 113x 113x 66.5 EMC Standards EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge 4KV). criteria A Input Voltage 90~305VAC, 127~431VDC Safety Standards UL8750, EN61347-2-13 Output Voltage Options Single Working Temperature -40~+70°C PDF Datasheet HBG-100-spec_3.pdf
