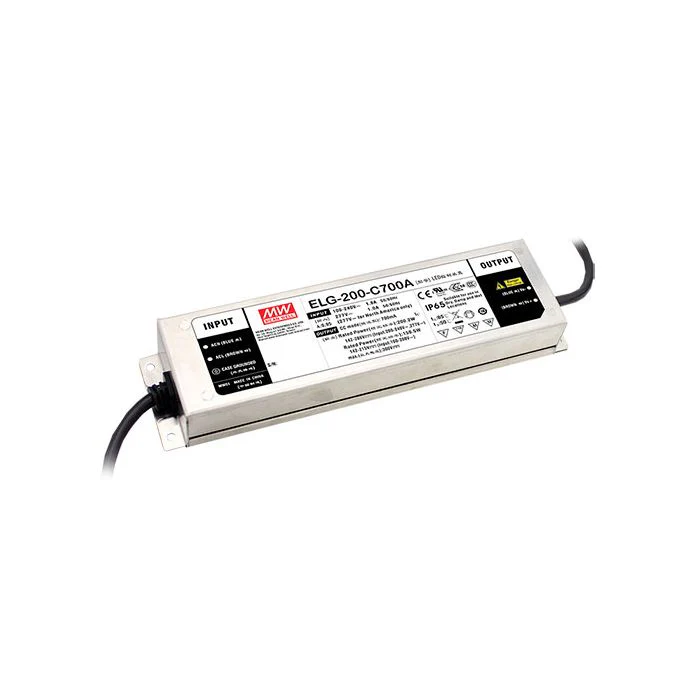

ELG-200-C-S - Mean Well ELG-200 Series LED Driver 198.8-201.6W 700-2100mA
Constant current mode outputMetal housing design with functional groundProtections: Short circuit/ Over Voltage/ Over temperatureOther features:Built-in active PFC functionNo load/standby power consumption <0.5WIP67 / IP65 rated design for indoor or outdoor installationsFunction Options: output adjustable via potentiometer: 3 in 1 dimming (dim-to-off); Smart timer dimming; DALITypical lifetime>50000 hours5 years warranty
More Information Manufacturer Mean Well Output Wattage (W) 200 Dimmable (Type) 3 in 1 Dimming Dimensions 244x 71x 37.5 EMC Standards Compliance to EN55015, EN61000-3-2 Class C (>50% load) ; EN61000-3-3; GB17625.1, GB17743 Compliance to EN61000-4-2,3,4,5,6,8,11 ; EN61547, light industry level (surge immunity:Line-Earth 6KV, Line-Line 4KV) Input Voltage 100-305VAC 142-431VDC Safety Standards UL8750 (type”HL”); CSA C22.2 No. 250 13-12; ENEC EN61347-1, EN61347-2-13 independent, EN62384; GB19510.14, GB19510.1 ; IP65 or IP67 approved Output Voltage Options Single Working Temperature Tcase= -40~+85°C (Refer to "OUTPUT LOAD vs TEMPERATURE") PDF Datasheet ELG-200-C-spec.pdf
More Information Manufacturer Mean Well Output Wattage (W) 200 Dimmable (Type) 3 in 1 Dimming Dimensions 244x 71x 37.5 EMC Standards Compliance to EN55015, EN61000-3-2 Class C (>50% load) ; EN61000-3-3; GB17625.1, GB17743 Compliance to EN61000-4-2,3,4,5,6,8,11 ; EN61547, light industry level (surge immunity:Line-Earth 6KV, Line-Line 4KV) Input Voltage 100-305VAC 142-431VDC Safety Standards UL8750 (type”HL”); CSA C22.2 No. 250 13-12; ENEC EN61347-1, EN61347-2-13 independent, EN62384; GB19510.14, GB19510.1 ; IP65 or IP67 approved Output Voltage Options Single Working Temperature Tcase= -40~+85°C (Refer to "OUTPUT LOAD vs TEMPERATURE") PDF Datasheet ELG-200-C-spec.pdf
Constant current mode outputMetal housing design with functional groundProtections: Short circuit/ Over Voltage/ Over temperatureOther features:Built-in active PFC functionNo load/standby power consumption <0.5WIP67 / IP65 rated design for indoor or outdoor installationsFunction Options: output adjustable via potentiometer: 3 in 1 dimming (dim-to-off); Smart timer dimming; DALITypical lifetime>50000 hours5 years warranty
More Information Manufacturer Mean Well Output Wattage (W) 200 Dimmable (Type) 3 in 1 Dimming Dimensions 244x 71x 37.5 EMC Standards Compliance to EN55015, EN61000-3-2 Class C (>50% load) ; EN61000-3-3; GB17625.1, GB17743 Compliance to EN61000-4-2,3,4,5,6,8,11 ; EN61547, light industry level (surge immunity:Line-Earth 6KV, Line-Line 4KV) Input Voltage 100-305VAC 142-431VDC Safety Standards UL8750 (type”HL”); CSA C22.2 No. 250 13-12; ENEC EN61347-1, EN61347-2-13 independent, EN62384; GB19510.14, GB19510.1 ; IP65 or IP67 approved Output Voltage Options Single Working Temperature Tcase= -40~+85°C (Refer to "OUTPUT LOAD vs TEMPERATURE") PDF Datasheet ELG-200-C-spec.pdf
More Information Manufacturer Mean Well Output Wattage (W) 200 Dimmable (Type) 3 in 1 Dimming Dimensions 244x 71x 37.5 EMC Standards Compliance to EN55015, EN61000-3-2 Class C (>50% load) ; EN61000-3-3; GB17625.1, GB17743 Compliance to EN61000-4-2,3,4,5,6,8,11 ; EN61547, light industry level (surge immunity:Line-Earth 6KV, Line-Line 4KV) Input Voltage 100-305VAC 142-431VDC Safety Standards UL8750 (type”HL”); CSA C22.2 No. 250 13-12; ENEC EN61347-1, EN61347-2-13 independent, EN62384; GB19510.14, GB19510.1 ; IP65 or IP67 approved Output Voltage Options Single Working Temperature Tcase= -40~+85°C (Refer to "OUTPUT LOAD vs TEMPERATURE") PDF Datasheet ELG-200-C-spec.pdf
$24.92
Original: $71.21
-65%ELG-200-C-S - Mean Well ELG-200 Series LED Driver 198.8-201.6W 700-2100mA—
$71.21
$24.92Description
Constant current mode outputMetal housing design with functional groundProtections: Short circuit/ Over Voltage/ Over temperatureOther features:Built-in active PFC functionNo load/standby power consumption <0.5WIP67 / IP65 rated design for indoor or outdoor installationsFunction Options: output adjustable via potentiometer: 3 in 1 dimming (dim-to-off); Smart timer dimming; DALITypical lifetime>50000 hours5 years warranty
More Information Manufacturer Mean Well Output Wattage (W) 200 Dimmable (Type) 3 in 1 Dimming Dimensions 244x 71x 37.5 EMC Standards Compliance to EN55015, EN61000-3-2 Class C (>50% load) ; EN61000-3-3; GB17625.1, GB17743 Compliance to EN61000-4-2,3,4,5,6,8,11 ; EN61547, light industry level (surge immunity:Line-Earth 6KV, Line-Line 4KV) Input Voltage 100-305VAC 142-431VDC Safety Standards UL8750 (type”HL”); CSA C22.2 No. 250 13-12; ENEC EN61347-1, EN61347-2-13 independent, EN62384; GB19510.14, GB19510.1 ; IP65 or IP67 approved Output Voltage Options Single Working Temperature Tcase= -40~+85°C (Refer to "OUTPUT LOAD vs TEMPERATURE") PDF Datasheet ELG-200-C-spec.pdf
More Information Manufacturer Mean Well Output Wattage (W) 200 Dimmable (Type) 3 in 1 Dimming Dimensions 244x 71x 37.5 EMC Standards Compliance to EN55015, EN61000-3-2 Class C (>50% load) ; EN61000-3-3; GB17625.1, GB17743 Compliance to EN61000-4-2,3,4,5,6,8,11 ; EN61547, light industry level (surge immunity:Line-Earth 6KV, Line-Line 4KV) Input Voltage 100-305VAC 142-431VDC Safety Standards UL8750 (type”HL”); CSA C22.2 No. 250 13-12; ENEC EN61347-1, EN61347-2-13 independent, EN62384; GB19510.14, GB19510.1 ; IP65 or IP67 approved Output Voltage Options Single Working Temperature Tcase= -40~+85°C (Refer to "OUTPUT LOAD vs TEMPERATURE") PDF Datasheet ELG-200-C-spec.pdf
