As standard the ECOdrive product will be sent out pre-configured for 350mA current.  The current is settable at any interval between 150mA and 1400mA, however to carry out this adjustment you will require the TOOLbox pro accessory as well as a suitable computer.
If you would prefer, we can pre-configure the drivers to your requirements for an additional £1.50+vat per driver.  Please click here for this service.

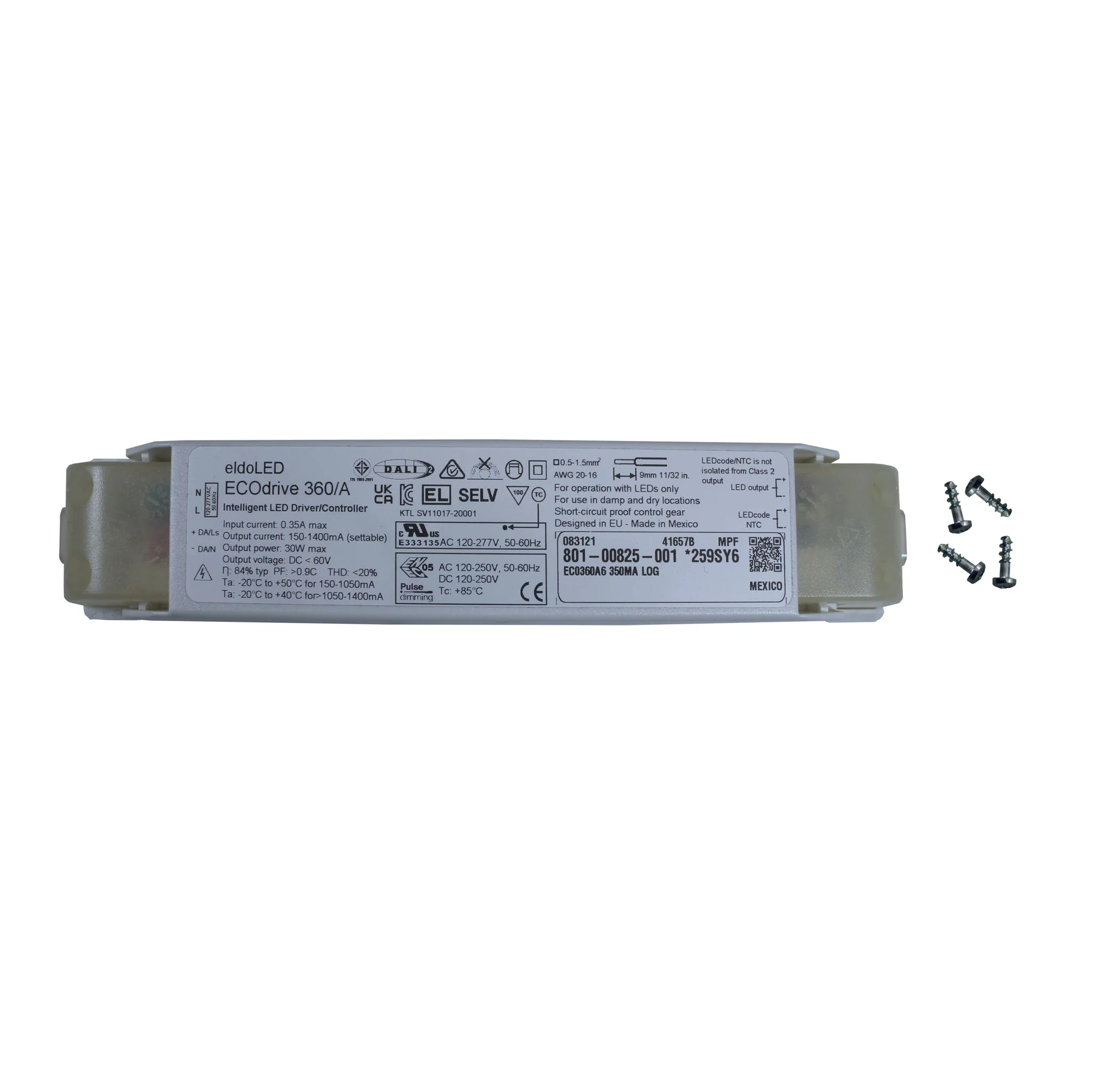

ECOdrive 360/A6 delivers 30W and is DALI-2 certified. The end caps function as wire restraints and make the driver perfectly suited for independent installations. As all ECOdrives, the 360/A6 smoothly dims down to 1%.

Features

• Hybrid HydraDrive: provides the smoothest flicker-free high-performance dimming to 1% for every fixture
• LEDcode2: connects to integrated digital accessories, supports location-based IoT applications and enables wired and wireless lighting control through LEDcode peripheral devices
• NTC interface for robust thermal management

Benefits

• Increase performance and capability of any LED fixture
• Reduce inventory and decrease lead times with configurable drivers
• Short lead times, designed to meet the most aggressive timelines
• Trusted brand with proven track record of performance and reliability

Input Characteristics

Nominal input voltage range AC: 120 - 250V (ENEC), 120 - 277V (UL)
Nominal input voltage range DC: 120 - 250V
Maximum input current: 0.35A @ 120V / 60Hz
Input frequency range: 50 - 60Hz

Output Characteristics

Maximum LED output power: 30W
Number of LED outputs: 1 (UL Class 2)
Programmable LED output current range: 150 - 1400mA
LED output type: Programmable in 1mA increments within specified current range
LED output current tolerance: +/- 5% at programmed LED output current
LED output voltage range: 2 - 55V

Downloads

Datasheet EC0360A6
Specification submittal sheet EC0360A6
Datasheet EC0360A5-PSE
